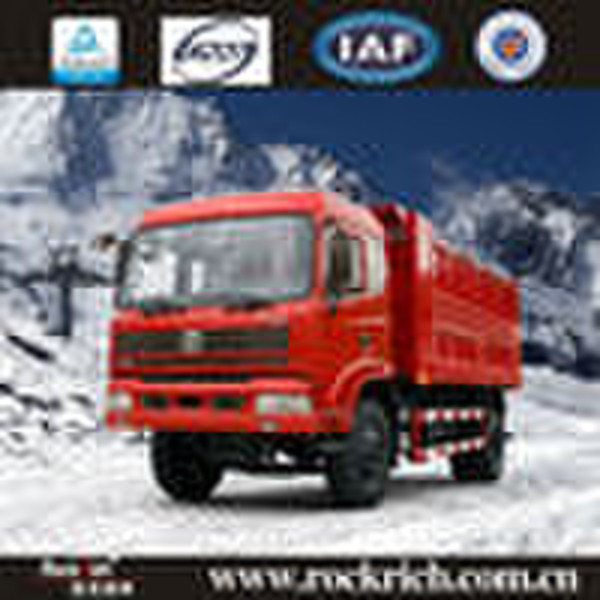

YG3258A13 heavy duty dump truck
White Bai
Contact person
Basic Information
YG3258A13 tipper heavy duty tipper truckoverall sizeunladen mass(kg)13000trailer gross mass(kg)25000overall dimension(mm)8200,8400,8500,8700 × 2500 × 3450wheel base(mm)3800+1450front/middle/rear wheel tread(mm)2040/1850/1850approach /departure angle(°)30/24,30/22,30/21,30/20assembly configurationItemsassemblyDrive mode6×4engineDCi340-30,DCi290-30,ISLe340 30,ISLe290 30,YC6M340-33,YC6M290-33,L340 30,L290 30,EQR340-33,EQR300-33cabD310(single bed)geer boxRJ-11509GclutchΦ430(spring-loadedclutch)front/rear axle7T/13T×2frame section300×90×(8+8) mm(null)flat leaf spring quantity9/10,9/13,10/13,10/12tire10.00R20front whole,in red color tractor without container Balancing axle beam double crossbeam leaf spring lifting transmission shaft Digital dashboard The dashboard many colors you can choose tire,geer box,engine can be adapt by your requirment it can be used in mines,moutains,projects and so on
Delivery terms and packaging
Port: Shanghai
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
